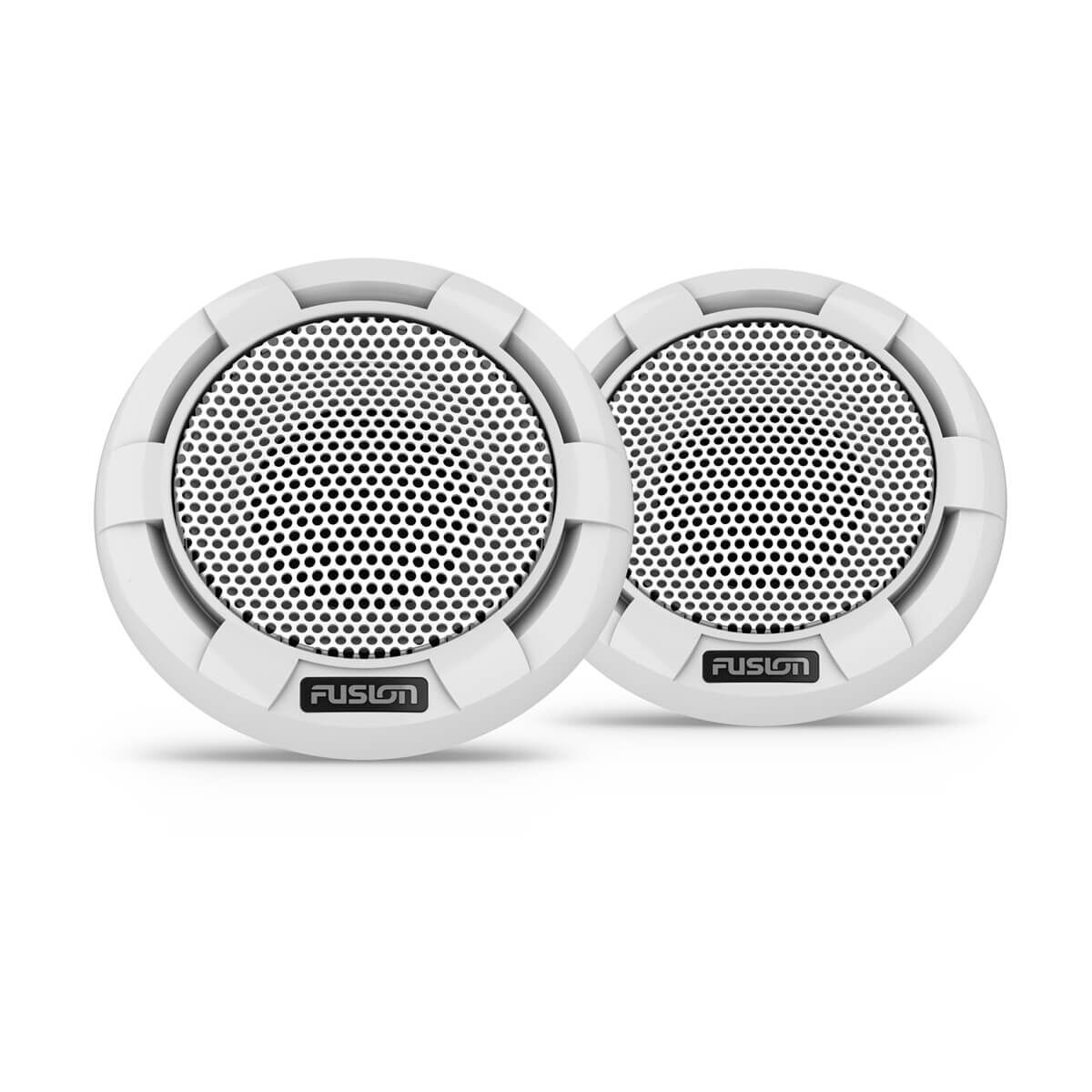

Fusion® Signature Series 3i Component Tweeters

Part Number: 010-02796-20

Enhance your listening experience while you’re on the move with these marinised component tweeters. Designed to be dash mounted in raised positions to restore high frequencies, you can clearly hear vocals over engine, wind and wave noise. Key features include a compact form factor, low profile mounting design, IP65 weather rating and Fusion True-Marine™ design with a 3 year warranty. Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.

In The Box:

  • One pair of component tweeters
  • 6 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1?))
  • 2 water-resistant cable assembly with 2-pin connector (5.9? (150 mm))
  • Documentation
General
Physical dimensions (diameter x depth) 2.91? x 1.64? (74 x 41.6 mm)
Water and dust rating IP65
Tweeter size 1?
Peak power (watt) 330 W
RMS power (watt) 60 W
Sensitivity (1 W / 1 m) 91 dB
Frequency response 3 kHz - 20 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 25 - 140 W/Ch
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 1?
Material Aluminum dome
Tweeter connection Flying lead with water-resistant 2-way connector, 5.9? (150 mm)
Compass-safe distance 43.3? (110 cm)



Mounting Dimensions
Mounting diameter clearance 2.01? (51 mm)
Mounting depth clearance 1.22? (31 mm)
SKU 010-02796-20
Barcode # 753759303020
Brand Fusion Marine Audio by Garmin
