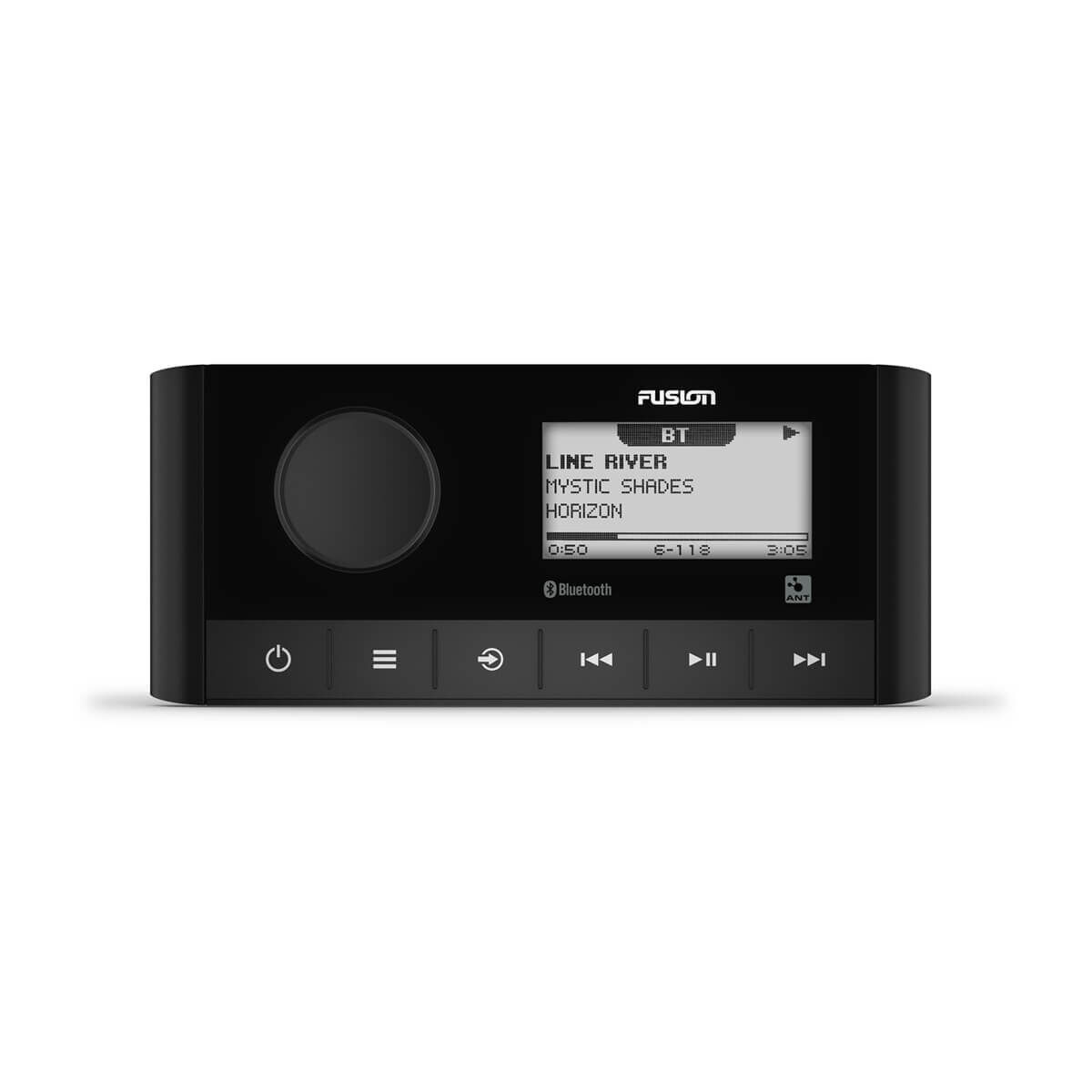

Fusion® MS-RA60 Marine Head Unit

Part Number: 010-02405-00

Modern, Compact and Economical
The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.

  • Bonded LCD improves durability and protection against condensation and fogging.
  • Built-in Class-D amplifier delivers higher efficiency and greater output.
  • Enjoy convenient over-the-air software updates via Bluetooth® technology from the Garmin Audio app1.
  • Multi-Zone Technology gives you control of two separate audio zones.
  • Control your music from your compatible smart device or Garmin watch.

IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

RETROFITTABLE
The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.

Enjoy a variety of source options.

  • Multiple source options - Take advantage of the multiple source options available, including Bluetooth technology, DAB+ radio, AM/FM radio and AUX connection.
  • Built-In Dab Tuner - The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported. Simply connect an appropriate AM/FM antenna with no external DAB module required.

In The Box:

  • Fusion® MS-RA60 Marine Stereo
  • Mounting gasket
  • Four 6-gauge, self-tapping screws
  • Two screw covers
  • Power and speaker wiring harness
  • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
  • Documentation
General
Dimension 156 x 68 x 103.2 mm (6.18? x 2.68? x 4.06?)
Weight 316 g
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Display 2.3? perimeter bonded monochrome dot matrix LCD
Operating temperature 0° to 50° C
Current (max) 15 A
Multi-language interface Dutch, English, French, German, Italian, Spanish



Audio
Amplifier Class-D (4 ohm)



Electrical features
POWER INPUT 10.8 - 16 VDC
Compass safe distance 150 mm (5.9?)



Stereo features
Peak power 180 watts
Rated power output (4 Ohm) 22 watts RMS x 4 @ 14.4 V input < 10% THD
Garmin audio control Yes (MFD, smart device and Garmin watch)
Multi-Zone™? technology 2 zones
Bluetooth® wireless technology
ANT® wireless technology
DAB+ ready
Software updates Over-the-air updates via Garmin Audio app



Sources
Supported sources AM, FM, Bluetooth®, AUX x1
DAB+ (available in Europe and Australia only)



Networking & Connections
Auxiliary inputs (RCA) 1
AM/FM ports (Motorola antenna connector) 1
Speaker connections 4 (2 zone amplified)
RCA Pre-out (left, right and subwoofer) 1 zone (requires external amplification)
Line out Zone 1: L + R (requires external amplification)
Subwoofer out Zone (requires external amplification)
Wireless frequencies/protocols Bluetooth®: 2.4 GHz @ +12 dBm nominal
ANT®: 2.4 GHz @ +7 dBm nominal
ANT® wireless range Up to 10 ft (3 metres)
Bluetooth® wireless range Up to 30 ft (10 metres)
SKU 010-02405-00
Barcode # 753759250300
Brand Fusion Marine Audio by Garmin
