Fusion® MS-CL602 In-Ceiling Speakers

Part Number: MS-CL602

DISTINCTIVE AUDIO. DISCREET DESIGN.
The MS-CL602 speakers deliver quality audio reproduction with a flush-mount finish for installation in your boat cabin.

  • A flush-mount finish is perfect for in-ceiling or wall-mount installations in cabins.
  • The polypropylene cone provides clean, clear audio reproduction.
  • The silk dome tweeter provides smooth upper frequency response and increased efficiency.
  • Built-in mounting tabs keep the speaker in place, without additional fasteners or adhesives.

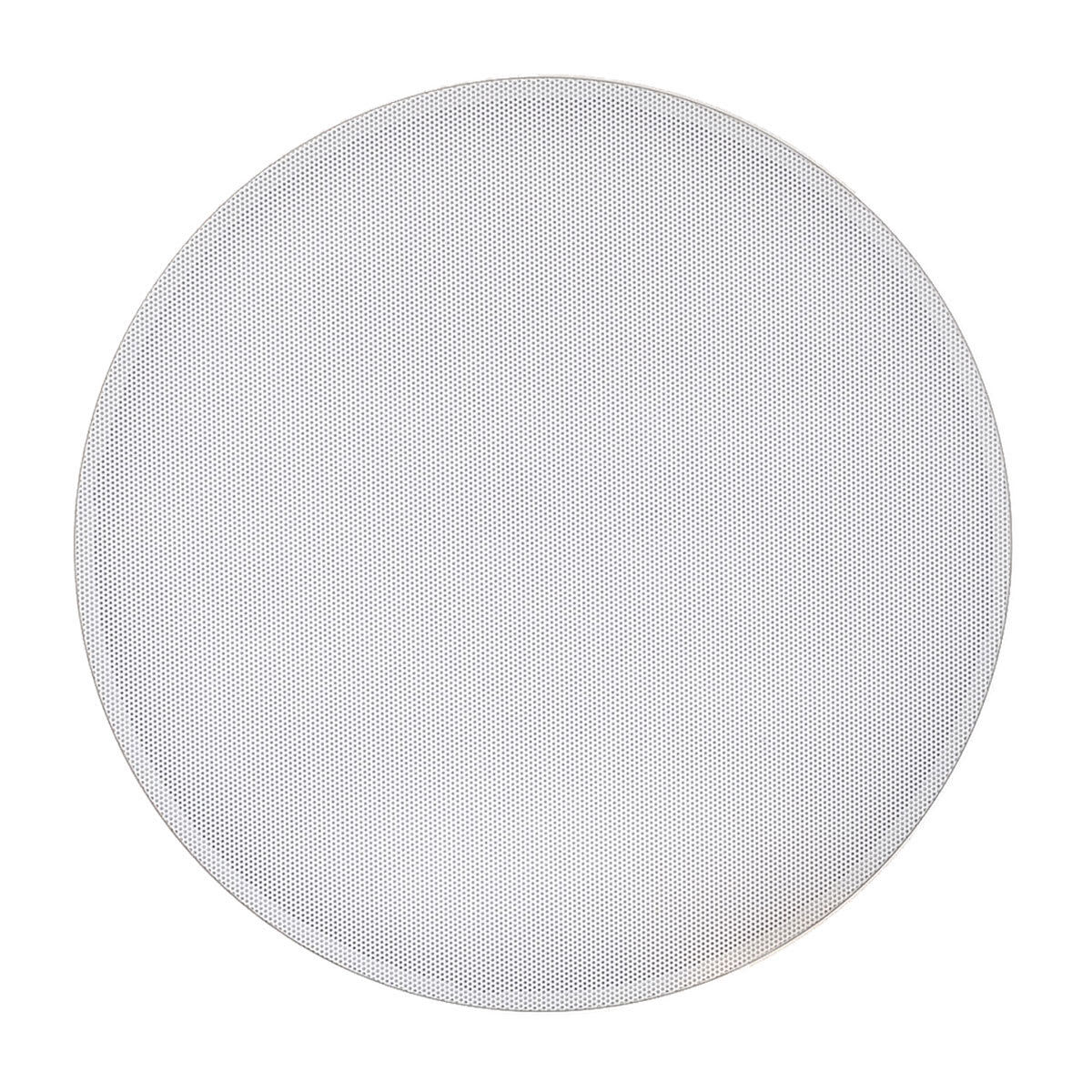

  • The magnetically attached classic white metal grille ensures clean aesthetics.

Notice the sound. Not the speakers.

  • Quality Audio
    Combining a polypropylene cone and silk dome tweeter in a shallow basket design, these speakers are acoustically engineered for high-quality sound.
  • Simple Installation
    Simply place the speaker into a cutout, and the built-in mounting tabs will keep the speaker in place. The grille attaches magnetically, so you won’t need any additional fasteners or adhesives.
  • Marinised Design
    High-quality materials and marine-specific design elements not only provide enhanced aesthetics but also ensure high-quality audio on your boat.

In The Box:

  • One pair of in-ceiling speakers
  • Mounting template
  • Documentation
General
Physical dimensions (diameter x depth) 9.14? x 3.12? (232.2 x 79.3 mm)
Weight (single unit) 3.64 lbs (1.65 kg)
Configuration Coaxial
Peak power (Watts) 120 watts
RMS power rating (watts) 40 watts
Sensitivity (1 watt @ 1 metre) 89 dB
Frequency response 85 Hz–20 kHz
Nominal impedance 6 ohm
Operating temperature range 32–122 degrees F (0–50 degrees C)
Voice coil diameter 1.18?
Cone material Polypropylene cone with rubber surround
Tweeter type Silk dome
Warranty 1 year



Mounting Dimensions
Mounting diameter clearance 8.11? (206 mm)
Mounting depth clearance 3.07? (78 mm)
SKU MS-CL602
Brand Fusion Marine Audio by Garmin
